No. 122. Maquettes, Part 4: When Is It Not a Good Idea?

Maquette: When Not to Make It

Let's talk about when it may not be a good idea to create a maquette.

To review, for animators a maquette is a little model of a character for use as drawing reference. When sculptors made small models of proposed heroic sculptures to be done in stone or bronze, they used the word to mean "sculpted sketch."

The animator, required to draw her or his character from most any angle, relies on a maquette to find out how that foreshortened nose looks from the bottom, or how an ear turns in perspective with the head.

All well and good. But I think of two situations when it may not be such a good idea.

If The Character Design Is Truly Flat

Despite our claim on the two-dimensional, many 2D animation characters are designed as if they were actually 3 dimensional. In an effort to look "real" (whatever that means), the designs try to imagine the character in 3 dimensions, so that every detail of any drawing of the character is intended to make sense with every other drawing in terms of solid geometry. Bugs Bunny is like this, and so is Maui, the warrior from the recent Disney movie. Drawing a character in this geometrically convincing way can be a compelling part of the "illusion of life" approach to animation that is seductive to so many animators, myself included.

The ultimate outcome of the thrust in this direction is the technology of the digitally modeled and animated character; in this view, the virtual maquette, like the puppet Pinocchio, has come alive.

But some characters are conceived without regard for any kind of three-dimensionality. Designed on a flat surface, the designer allows their two-dimensionality to remain obvious and even uses flatness boldly in defiance of graphic realism. A model sheet of such a character may show various typical angles, but one angle may not logically rotate to another. We make it work in animation by seldom moving slowly from one angle to the next, and some angles are entirely avoided or at least not given more than one or two frames in passing.

Let's consider an example or two of this sort of truly two-dimensional character.

Here is a character whose turban is a graphic, angular spiral and whose facial
features are deliberately flat; this is not a good candidate for a maquette.

This guy looking to his right has both eyes on one side of his nose. If he turned to
look to the left, his eyes would be on that side. Maquette? I think not.

This cowboy has an appealing flat design that would not
do well if sculpted into a maquette.

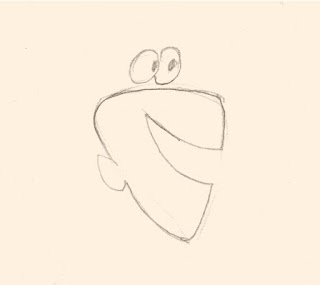

This character with his floating eyes and flat, profile mouth and ear would look
better on an Egyptian frieze than as a maquette.

Also there is a hybrid approach to character design, which is what I subscribe to, choosing to accentuate either two-dimensionality or three-dimensionality as seems appropriate, and sometimes to combine both in the same character. This playful and open-minded attitude can even be seen in the drawings of the great Disney animators, who would often simplify a pose for graphic clarity, for example creating a single beautiful arc reaching from ankle to fingertips of a character stretching to one side

The Old Man character from my current film Carry On is of this hybrid type. His design contains some elements that I prefer for the sake of clarity to leave in the zone of two-dimensional graphics rather than to try to render them like solid objects.  (See notations in the illustration below.)  Also, I have found myself able to draw him from every desirable angle, and so a maquette of him is simply not needed.

This character is both round and flat. I never want to show his eyeglass lenses on edge (note profile view) and I take many
liberties with his ears and hat, among other things, that would be hard to depict in three dimensions.

If The Animator Is Too Literal

For beginning character animators especially, the hazard of using a maquette is in taking its rigid shape too literally. Despite the rigid parts of a head, for instance--the skull and the jaw--great liberties can be taken in animation that strict adherence to the proportions of a maquette can dampen out. The jaw can move from side to side as well as up and down, for example, and temporary distortions of elasticity even of the skull may sometimes be desirable. Someone too dependent on the maquette in her or his hand may miss opportunities where accents involving geometric exaggeration could enhance the animation.

For earlier discussion of the subject of the maquette, see posts nos. 116, 118 and 119.

Tuesday, February 14, 2017

No. 121, More about Crowds

Thanks to Rafael Silva, who in a comment to Post No. 120 (Bring In the Crowds) directed me to the comments of Mark Kennedy on drawing crowd scenes in the blog Seven Camels. The link is repeated here: .

This stimulates me to say a little more about my own crowd drawing, and the three tricks I used to make it effective. At one time I worked for Dark Horse Comics, doing a funny animal series called Wacky Squirrel, among other things. Working in pen or brush and black ink, you learn a lot about how to depict things clearly.

1. All the characters in the first four rows are distinct enough that you can tell which way they are facing.  This was important to show the direction of traffic flow through the maze of the security queue--back and forth, evoking an image of cattle in a slaughter house.

2. Height graduated in waves. This is not what you would normally see in a crowd, but it helps the eye to follow a file of people standing in line so that the progression is clearly seen as a line rather than just a mass.

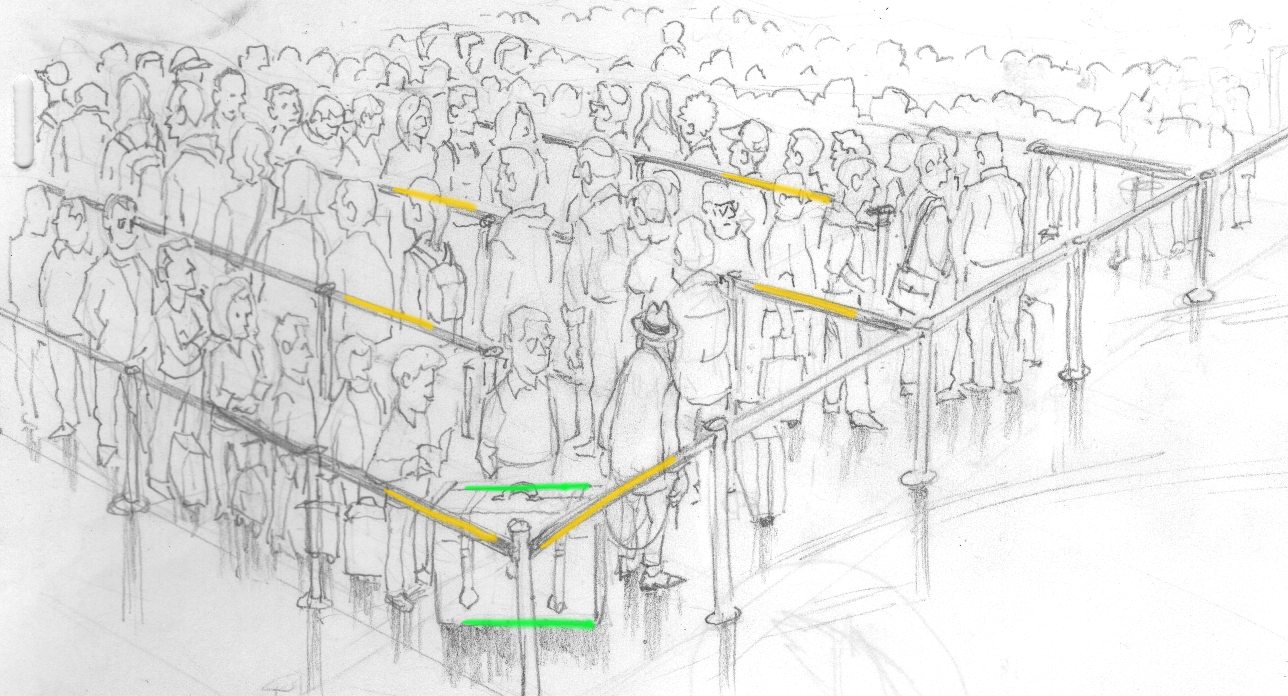

3. Diagonal contrasted with horizontal. With the dominating directions of the lines of people and of course the tapes that separate them being diagonal, the Old Man's trunk being placed horizontally stands out from everything else. I would add that I composed this part instinctually, only realizing later how well it worked!

Sunday, February 12, 2017

No. 120, Bring In the Crowds

If there is one thing that artists in hand-drawn animation do not like to attempt, it is probably the crowd. Doing a convincing representation of thirty or more people moving about is a nightmare, even with the virtually unlimited number of layers that can now be used digitally.

But in setting my film Carry On in a busy international airport, I kept feeling a kind of pressure in my own mind to at least once show a great many people, since no one in a big airport can not be aware of the mass of humanity in motion all around.

I had storyboarded a scene where the camera slowly panned left to right over a file of passengers waiting to go through the security scanners.  But the scene only showed seven people besides the Old Man character, and I thought it was the least effective looking scene in my whole storyboard.  I decided to re-imagine it.

Online I began looking at images of people waiting in airports, and I finally got the inspiration I needed.

The scene opens on a medium closeup of the old man.

He idly turns his head to the right, so we see him in profile, and then his head swivels back as before.

The camera begins to zoom out.

Dissolve to a wider view, still zooming out, until the crowd below is revealed.  Also the ambient airport sound will fade up as the camera pulls back.

Then a quick fade out/fade in to the scene where my protagonist is at the head of the security line.

So there is my crowd scene, all done with just a few drawings, but showing how my character had to get in line with everyone else.  And the fact that the people in the crowd do not move is justified; they are merely standing still, waiting for their line to get moving again.

Next: What?!! My Storyboard is DONE??!
