No.29, Problem Five: Bringing the Fox Down (Part 1)

This new animation problem is a fascinating one for me; I hope that you will find it interesting as well.

Once again, my director (me) has called me, the animator, into his office to discuss a scene I have turned in.  Together we review the pencil test. It is the scene right after Problem Four, where the fox, atop the man's head, has shaken himself out.  Now the man lifts the fox down from his head.

video



"What do you think of it?" the director asks.

"Umm, well, it certainly has to be changed because of the man's attitude at the beginning.  He was apprehensive about the fox's moving, but now he is just amused.  We have to match the two scenes."

"Yes, there is that," the director says, "but there's more.  Jim, I want you to do it again, start from scratch.  Don't even look at the old drawings.  When you get your extremes and maybe a few key breakdowns done, test it again and we'll look at it together."

A day later, I am back with the new test.

video


"Well, this is a lot different, isn't it?" says the director.  "You've really got a lot more acting into it."

I had, in fact, thought it through much more thoroughly.  Now I had the man playing to his wife, rather than worrying about getting the fox down, and the key drawings were more dynamic.  I had worked in the Z-axis, too, moving the fox close to the camera as he comes down.

"Okay, now go ahead and rough in more of the drawings, so we can look at your timing."


 Next:  Two Versions More

Monday, January 21, 2013

No. 28, Problem Four: Forty Seconds In Two Weeks (Part 4)

After inking the scanned drawings, I blocked in the color with flat fills in a monochromatic palette, then began working up the final colors in both flat and gradient fills.  Here is an early version of the bar, with many elements still showing in various shades of flat blue.

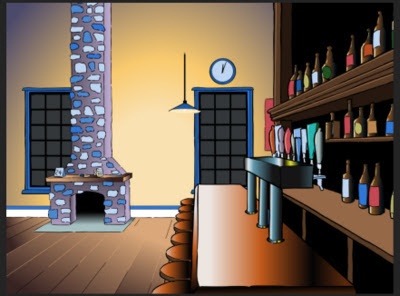

Next is a screenshot with more detail and color worked out; the beer labels, seats and beer pulls have been done.

And here is the finished artwork of the same scene.  The fireplace is done and the lamp cord extended.

Next, a shot of the mantle closeup with all the props in place.

Below is the master background for Scenes 3, 5 and 7.  Notice the wreath, shown as a scanned line drawing in Part 3, now in place above the fireplace mantle.  This is a completely new rendering of the fireplace and floor, but the back wall with windows, clock and poster is reused from the bar shot.
You will also see in the shot above that one of the hanging lamps is lighted; it is supposed to be the only light source in the room.  Due to time and budget constraints, I decided to not put in any cast shadows.  These would have added to the drama and effectiveness of the lighting.  For example, the wall just to the left of the fireplace would have had a strong shadow cast by the column of the fireplace itself, and the objects on the mantle in the closeup would have cast shadows off to the left.  However I was able to get a pretty good effect with gradients indicating the source of the light.

Finally here is one more still shot showing the "beauty shot" of the fermenter for Scene 7.  The fermenter was modelled using multiple gradients, and on the conical lower portion, the gradients were set at various calculated angles to fill a series of wedge-shaped areas.  The client was pleased with the result.

Each of the seven scenes I made into a separate Animate Pro file; this is always recommended to keep layers and file size manageable.  Putting all your scenes in one file can otherwise be a nightmare to work with, partly because the timeline becomes so long it it hard to navigate.

My part was now about done.  I exported each of the scenes into a folder of png frames and sent them to my partner,  Don, for assembly and post production.  Because he had a plug-in that would create a good snowfall effect in Adobe After Effects, I had left the window panes transparent, and the png format supports the transparency.  Don then brought all the scenes together in Aftert Effects, added the fades and dissolves, and put in the snowfall effect both behind the windowpanes (for which Don requested a snowbank background to match the snowbanks in the exterior shot) and in the opening exterior shot itself.  There were some technical problems with the transparencies, but finally it all came together visually.  Don then added music, sound effects and the closing logo and titles, staying up most of the night since we were a day behind schedule.  He delivered the finished movie about noon the next day.



And now, all done in about two weeks time, here is the final 40-second movie:


Next:  Problem Five: The Fox Comes Down

Thursday, January 17, 2013

No. 27, Problem Four: Forty Seconds In Two Weeks (Part 3)

Storyboard to Production Art


With the storyboard approved, I was anxious and able to get to work on the actual production artwork.  First I created detailed "tight" pencil drawings of all the elements--backgrounds, props, Santa--everything except one view of the client's product, a beer fermenter that was to be the showpiece of the last scene.  This would be created from a photograph provided by the company.

Here are a few of the drawings:

The bar with long shot of the fireplace.  This was the most complex drawing of the whole project.
The mantle in closeup.


These were all scanned and imported to Animate Pro, each on its own layer, ready for tracing and color.

Finally, there was the fermenter, a shiny stainless steel tank on a stand, with valves and pipes.  Though I had good color photos of this, I felt that the lighting depicted was not right for the setting, so in Photoshop I stripped out all the color, made it into a high-contrast black-and white-image, and then deleted all but the most essential linear elements.  This is what I then imported into Animate Pro:
The fermenter in linear form.
From now I would be doing everything entirely in Animate Pro.  After inking everthing in black with a thin but variable brush, I then filled all the forms with temporary colors, using a palette limited to just six values of blue-gray.  This was partly to establish my value range and partly to prove that all the inking gaps were closed.



Next: Color and Movement, and the Finished Movie
