Tuesday, December 31, 2013

No. 53, In Memoriam: Frédéric Back, 1924-2013.


Frédéric Back


This week saw the passing of the great animator and designer Frédéric Back.  German by birth, he became a naturalized Canadian and resided in Montreal, where he created a number of short personal films under the aegis of Société Radio Canada.  (I had previously written that he did his work for the National Film Board of Canada, but in fact he never did.)

I first became familiar with his work in the 1970s, but at his death I realized I had seen only two of his nine films: The Man Who Planted Trees and Crac! Yet those two were enough proof for me of his excellence as a maker of 2D animated films.


The Man Who Planted Trees is based on a true story and also reflects Back's own personal life experience as a conservationist and arborist.

Crac! is a Quebecan family history told around the image of a hand-made rocking chair that becomes a family heirloom.

Both films are magical journeys full of music and transient animated imagery.  And always, the drawing is there, never hidden or disguised; one is invited to enjoy it as drawing even as it moves and transforms as cinema, as storytelling.  Back's films are 2D drawn animation at its best.

These two films and others (though not all) are available for viewing on YouTube and Vimeo, and I challenge you to a minor New Year's resolution to watch and enjoy them along with me.

And now, Happy New Year to my friends and readers around the world!

Tuesday, December 10, 2013

No. 52, Supporting 2D Animation

Draw-4-2D


If you haven't heard about Tony White's 2-D Liberation Movement and the associated Draw-4-2D project, let me fill you in.  Tony White is an award-winning animator, author of animation books and teacher of animation who for years has been trying in various ways to spotlight 2D animation as a dying art and craft, and to stimulate a revival.  Tony points out that whereas 2D animation once flourished in the US, now it has all but died out in theatrical production, while in Europe and Asia 2D films are still being created and enjoyed.  American distributors seldom show any interest in these works.

The Draw-4-2D project is to solicit drawings to be contributed by at least a hundred artists from around the world, plus written statements of support and inspiration, to be published as a book.  The artwork may also appear in a gallery presentation at a future date.

As a fervent advocate of the preservation and continuance of 2D animation myself, it was my pleasure to contribute a drawing for this effort.

My contribution to Draw-4-2D.
 Please check out Tony's website, 2-D Liberation Movement, here, click on Blog, and consider supporting him by sending in your own drawing.


Monday, November 25, 2013

No. 51, Hollywood Cartoons: One's or Two's; Which Works Best?

Sometimes I like to load a DVD of classic cartoons into my laptop and step through parts of the animation, frame-by-frame.  This way you can learn something about the thinking and strategy of the animator and often pick up a few of his tricks.

The other day I was doing this with Bugs Bunny Rides Again, the 1947 cartoon directed by Friz Freleng.  This was the second appearance of Yosemite Sam, and the credited animators are Ken Champin, Virgil Ross, Gerry Chiniquy and Manny Perez.

The big showdown between Bugs and Sam (six-shooter, seven-shooter, eight-shooter, nine-shooter, ten-shooter, pea-shooter) contained a surprise and a puzzle when viewed frame-by-frame: the animation of the quick draw action for Sam was mostly on two's; for Bugs, it was mostly on one's.

If you are not familiar with this terminology, here is a little explanation: it was generally held even at Disney that most action could be presented smoothly enough on two's--that is, two frames of film exposed for each drawing in film that ran at a projection speed of 24 frames per second.  So, for one second of action, you might need only 12 drawings instead of 24.

However, for very fast action, and especially where drawings exposed on two's would not overlap at all  (and overlap helps to smooth out the flow of animation), it was regarded as necessary to have a drawing for every frame of that very fast action.

Thus, an animated sequence could be expected to have sections where the slow bits were on twos and the very fast bits were on one's.

(Another circumstance where it is considered necessary to animate on one's is during a camera pan movement, because since the background is moving on one's, the character has to be doing the same.)

In the showdown between Sam and Bugs, they face each other and draw their two guns alternately.  Here is where I observed a difference in their animation.  It became obvious because this sequence escalates.  Sam has six-shooters; Bugs draws seven-shooters; Sam draws eight-shooters, and so on until Sam draws ten-shooters and Bugs draws a pea shooter.  And the same timing shows up in each instance  (and, yes, the animation is different each time; the studios at this point in animation history seldom engaged in reuse of animation.)

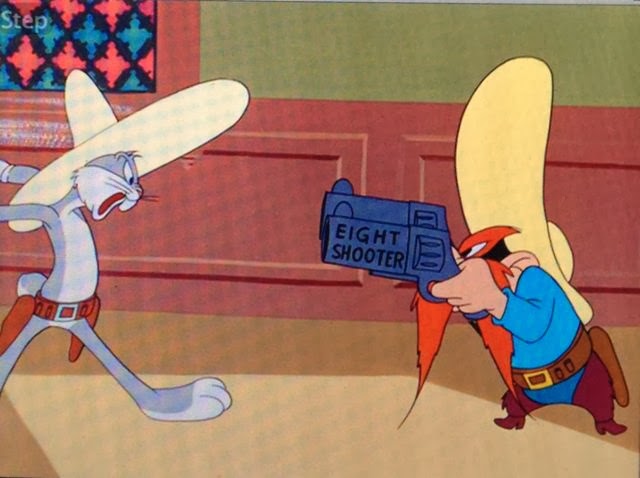

Below are the key frames from just one part of this action, where Sam draws eight-shooters (on two's) and then Bugs draws nine-shooters (on one's).  Let's look at them now, and then I will say more about them.

Start of the action.
Sam drawing one: 1 frame.
Sam drawing two: 1 frame.
Sam drawing three: 1 frame.
Sam drawing four: 1 frame.
Sam drawing five: 2 frames.  Here I skip 2 drawings of 2 frames each which are the anticipation as he grips his holstered guns.

Sam drawing eight: 2 frames.
Sam drawing nine: 2 frames.
Sam drawing ten: 2 frames.
Now it is Bugs' turn to draw.
Bugs drawing one: 1 frame.
Bugs drawing two: 1 frame.  Again, I skip a few frames as Bugs says something, then gets ready to draw his pistols.
Bugs drawing nine: 1 frame.
Bugs drawing ten: 1 frame.
Bugs drawing eleven: 1 frame.
Bugs drawing twelve: 1 frame.
Bugs drawing thirteen: 1 frame.
And they hold on the final drawing.
Studying this frame by frame, I wondered why it was that Bugs' draws were on ones (or 1's; to me it doesn't matter how you write it) and Sam's were on twos.  I even wondered momentarily if a separate animator had drawn each character.

Playing it with sound, everything became clear to me.  The timing is driven by the dialog.  Each character says something like, "Oh, no it don't!", and draws his guns on the last word.  Sam, as voiced by Mel Blanc, draws his words out a bit longer than Bugs, also voiced by Mel Blanc.  The animator was simply hitting accents, and with Bugs he needed fewer frames to get to the accent.

But what an interesting look at the use of 1's and 2's this is.  The actions are quite similar, the difference between use of 1's and use of 2's is, in this case, just about undetectable.  And they both work.  All the usual techniques are here: stretched shapes, dry-brushed speed and motion lines or tracks, and even a one-frame smear when Bugs brings out his pea-shooter (not shown.)

I invite you to look at some animation this way.  Many console  DVD players offer this step forward feature, and the DVD player of my Macbook Pro also works well for this, except that it will not step backwards.

Note: All images in this post are copyright of Warner Brothers Entertainment, Inc., and are used with their imagined indulgence.

Sunday, November 17, 2013

No. 50, Jim on a Limb: One (Part 6)

Animating the scene shown and described in No. 49 was a matter of trial and error.  For the most part, the poses worked and it was just a matter of working out the timing.  For example, the two changes of expression (from despair to determination, then to cunning) were at first almost identical in their timing.  I realized then that coming one right after the other, they needed to be different from each other.
Despair to determination is now shorter in frames, and the hold at the end is also shorter, than both those things in the second transition, from determination to cunning.  The latter thus gets more stress, and fittingly becomes the more important.

Three expressions: despair, determination, cunning.


To view the difference in timing, go here.

One pose that had to be re-done was this one showing her slumped down in despair.  For this character I wanted to use that limp-wristed attitude that at one time was so common among women when their hands were idle, but my first try had produced a pose that did not quite express the despairing mood.



Also, when I saw the test in animation, I didn't like the movement, which showed the forearms and hands pulling back up too far after dropping down. It did not express the intended attitude of resignation and despair.

I replaced that pose with the one shown below, and I damped the movement until it seemed just right.



But one thing did go as I had hoped, and I got it right first time out.  This is the final movement where she settles into her attitude of supplication; she is saying, "Give me a break!  What did I ever do to you?"  Her arms come up and she knocks her fists together three times, hunching up her shoulders.



When something like this does go right, it makes all the other struggles worthwhile.


Next: Jim on a Limb: One (Part 7)  Doing What Is Necessary

Sunday, November 10, 2013

No. 49, Jim on a Limb: One (Part 5)

Note: I have now numbered all my posts chronologically, in addition to having series and subject headings.  I think this will make it a little easier for me to refer back to previous posts, and for you to locate them, especially as the parts of  series are are not always consecutive.



The Pencil Test


Here is the pencil test of Victoria as promised in my last post.  Remember that the fox has her firmly by the nose throughout this scene.  I have not included that layer of the fox only because using too many layers in a pencil test makes for a dark and murky image that you may have trouble viewiing.

video
[movie]

It works pretty well now, but as in most complex things that one tries to plan in advance, there were some changes along the way.


Changes to the Plan


First, two new extreme poses were added.  They fall between poses E and F as shown in Part 4.  Here are those poses again, with the new ones placed inbetween.

Pose E
Pose E expresses her feeling of despair.


Pose E-1

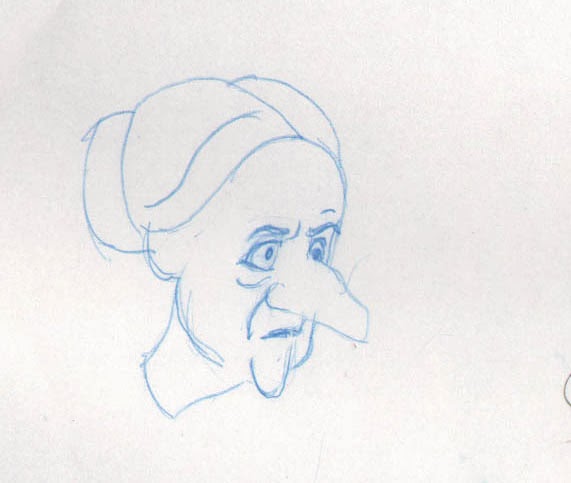

The first new pose, call it E-1, shows her stubborn nature returning; she will not be defeated!


Pose E-2
The second new pose, E-2, is a cunning expression; she has an idea and she is calculating whether it will persuade the fox.


Now we go to pose F and then G, where she gathers herself and then adopts an attitude of pleading or supplication.


Pose F

Pose G

Thus we have her thinking her problem through in a way that the viewer can easily follow.  This is the sort of deep exposition that I am just now learning to do, and which I have often failed to understand in the past, largely because my experience in professional animation has been mostly confined to commercials of 30 seconds or less, with no time and frames to spare for looking into a character's motivations and thought process.


In Part 6, I'll talk about how the animation itself went on this little scene.

Next: What Came Easy, and What Was Hard



Friday, October 25, 2013

No. 48, Jim on a Limb: One (Part 4)

Six weeks since I have posted.  Partly it was this and that, an illustration job, a couple of commercial jobs, the re-designing of my website, a busy late summer.  But also it was the difficulty of the problem here--the one I last mentioned in post no. 45, Jim on a Limb: One (Part 3)--in which I laid down the key drawings I needed to animate.  If you want to follow the continuity of this demonstration, please go back now and look at that post.

How It Looks in Pencil Test


Here is the result:

video
Of course this test is focused on the man.  His name is Albert.  I also have animation of the woman  about ready (her name is Victoria), but because too many layers make the pencil test dark and difficult to follow, I have left off all layers here except for two: Albert, and Albert's Head.

This is about what I wanted it to be in so far as Albert is concerned.  I think you can see him thinking.  He gets serious and cautious at the beginning, he communicates his plan to Victoria, and when he gets bumped in the nose by the fox as he lowers him down, Albert doesn't let it bother him much.  One thing I will make more clear is Albert's expression, which will remain disapproving until, at the end, he relaxes his stern expression to gaze in perplexity at the fox, who is behaving so badly.

Next it is Victoria who will try to deal with the fox, first as if to make some argument, then feeling hopeless, and finally just appealing to his good nature.  And all without a word of dialog or narration.

I have begun by adding a few more key drawings to define Victoria's performance; the first ones would be sufficient for a storyboard, but the animator must go further and think of everything that will be in the character's performance.

Victoria regards the stubborn fox.
Pose A is the last pose of the pencil test above.

She resolves to try something to make the fox let go.


Pose B shows her determination to act.  It also is an anticipation to Pose C.

She moves as if to speak out loud to the fox...
Pose C.  She might be about to actually say, "Why won't you let me go?"

...but stops short, realizing the futility of this.
Pose D pulls back a little from Pose C.  She holds for 16 frames, blinks.

Victoria slumps, feeling the situation as hopeless.
Pose E  expresses her feeling of despair.

An anticipation to pose G.
In Pose F, Victoria gathers herself for one last attempt.

The last pose: with her eyes she pleads for the fox's mercy.
Pose G shows her final supplication as she bats her eyelids and beats her fists together.

This is a tough bit to do because it is designed so that the character can barely move her head; where the fox grips her by the nose is a pivot point and anchor for the whole character, and the animator must work only with her expression, with her arms and hands, and with some cautious movement of her shoulders and body.


Next: Victoria and the Fox: the Pencil Test

Wednesday, August 7, 2013

No. 47, Hollywood Cartoons: A Disney Cel Puzzle, Part 2

I have a little bit to add to my piece in No. 46 about Who Killed Cock Robin.

One objective is to give due credit to the great Disney animator, Ham Luske.  Like Norm Ferguson, Luske was an early star talent in the thirties, responsible for much of the groundbreaking character animation that came out of the studio as the art was developing into the complex and subtle medium that reached its apex with the Nine Old Men.  Ham Luske may be best known as the animator of Max Hare, the brash and arrogant athlete of The Tortoise and the Hare.  But he also did the seductive, spot-on Mae West caricature , Jenny Wren, in Who Killed Cock Robin.

Second, after publishing the previous post, I recalled that there was mention of the Pegleg Pete gag in The Illusion of Life, the exhaustive Disney studio history and text by Frank Thomas and Ollie Johnston.  I looked it up and found this reference on page 50.

Turns out, it doesn't always have to be a bully or a villain doing this, as Oswald was a protagonist in his films.
Here you see the same gag three times--in 1928 with Oswald Rabbit (before Mickey), and with Pete in 1934 and in 1940.  These in addition to the one we mentioned from Cock Robin.

How many more times might it have appeared?  Perhaps Jerry Beck knows the exact number, but I am sure there must be a dozen examples at least.  It has occurred to me that the gag might be based on the business of some popular vaudeville or silent film comedian, but I don't know.

Saturday, July 27, 2013

No. 46, Hollywood Cartoons: A Disney Cel Puzzle

Time out for a little fun that came my way the other day when I was contacted by a man named Wesley Miller.  Mr. Miller has an interesting collection of animation art:  it consists of cels or drawings of characters being hit over the head.  He had contacted me becuase of an episode of the sitcom King of Queens I worked on in which the main character goes to bed in a fever, leaving the television on; he keeps changing channels, and in his delirium sees himself and his family in various popular TV shows (Wheel of Fortiune, The Honeymooners), one of which is animated.  In each segment his deceptions are discovered by his wife, and in our animated piece she hits him over the head with a mallet, then a skillet, and finally a piano.

When I replied, he sent me a scan of one of his acquisitions, telling me only that it was a Disney cel.  Here it is:

I decided it would be fun to see how much I could deduce from the image, based on my own knowledge of the evolution of  Disney styles and practices.

First of all, the characters were unknown to me--probably one-offs that did not appear in any other cartoons.  Most likely, it was from a Silly Symphony.

Notice the peg holes at the bottom: there are 5 of them.  This confirmed that it was Disney, all right, as the system is similar to Acme punching in that the end holes are oblongs and the center hole round.  The second and forth holes are uniquely Disney: a system for archiving the cels in binders; in this way the binder rings do not deteriorate the registration holes.  However, at Disney the old registration system of just two round holes was used into the early 1930's, so this cel must have come from a production that came after that innovation.

My next clue was more subtle: the drawiing style.  There is a crudeness and casualness to the drawing that, to me, places this example in the early thirties.  By 1936 the whole studio had been transformed by drawing classes and by high-minded work on Snow White into a temple of deliberately stylish drawing, often influenced  by anatomical knowledge even in the case of the most cartoony characters.  The famous  Three Little Pigs of 1933, despite its fine animation and characterization, still contains much design of the old school of animation: circles for heads and bodies and some rubber-hose style limbs.  Notice in the cel, how the judge's hands are inconsistent in their rendering: on the right hand, the little finger is longer than the ring finger, and the thumb seems to be confused with what may be a button on his robe.  A year later, no such ambiguity would be permitted at Disney.  The left hand with the mallet is equally casual with its small thumb and uncertain grip on the handle of the mallet, the head of which is squashed unconvincingly.

Even though this scene may have been the work of a junior animator, by the late thirties the styling even of inbetweens was rigidly consistent throughout the studio.

So I told Mr. Miller that I thought his cel was from between 1934 and 1936, and most likely 1934.  And it was!  Turns out it is from the Silly Symphony Who Killed Cock Robin?, which is most famous for its Jenny Wren character, a marvelous caricature in styling and movement of the voluptuous actress Mae West.  Released in 1935, it was probably drawn in 1934.

On YouTube, with a little work, I managed to isolate the very frame of film that captures this cel.  Here it is:


Notice that the expanding white impact flash now stands out well against the painted background.  The blur lines that trail after the mallet, however, hardly can be seen.

If you would like to see the whole cartoon, here is a good link.

This cartoon is a good example of the old style being overtaken by the new.  Let's look at a few more examples of this.

The repeatable gag, not repeated.
In the silent and black and white cartoons, well into the thirties, a funny gag was repeated once, twice, even three times, in an effort to get more mileage and screen time out of the footage.  This may have also been in the belief that the audience liked the repitition, or didn't realize they were seeing the same thing over again, or was too stupid to appreciate it in just one viewing.  In the beginning, Disney cartoons were as guilty of this as Warner Bros or the Fleischers.  At any rate it was commonplace, and here was a gag with that potential: the ambulance is flying along, encounters a big tree, and must veer sharply to make it between the bows.  But to my amazement, they do it only once!  The Disney studio has learned some restraint.


The cloned character gimmick.
Here's another convention that goes way back at all the studios, another technique regarded as a saver of time and work:  animating a character once, then inking the drawings multiple times, each time with the image displaced on the screen so that there appear to be two or more characters--in this case, eight!--all moving in unison like Rockettes.  Ub Iwerks did it in The Skeleton Dance from 1929, and it even appears as late as 1976 in Richard Williams feature Raggedy Ann and Andy (some dancing dolls).

But again, times were a-changin'...
Seven cops, seven different movements.

In another scene, these Keystone Kops characters, while all exactly alike in design, are all moving independently.  Disney has learned the appeal of complex and diverse movement in their quest for the "illusion of life."


The stereotype of the simple and lazy black man.
Racial stereotypes are found in many cartoons of this period, and even way into the 50's  (how about the lazy Mexicans in Friz Freleng's Speedy Gonzalez cartoons?) and the Disney organization was no exception to the rule.  Here we have a slow-talking character in the mold of Stepin Fetchit, dressed as a sleeping car porter, being victimized by a cop with an Irish (!) accent.

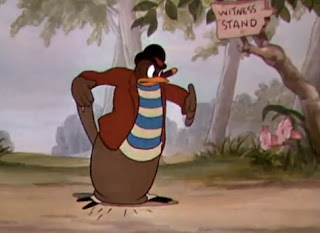

The tough guy raises his belly up...
...then lets it drop in a gesture signifying the bravado of a bully.
Here's a peculiar old gag that goes back at least as far as Pegleg Pete in Steamboat Willie.  I may be wrong, but I think it is exclusively a Disney gesture.  It may be just a takeoff on someone ostentatiously hitching up his pants.

Pete in Steamboat Willie, 1928, before he got his peg leg.
Here's Pete at full lift before dropping his belly, seven years prior to to the character in Cock Robin.  Old gags die hard.

Mae West aka Jenny Wren.
And here is an image of the Jenny Wren character, a real tour-de-force of personality animation for its day .





Please let me know if you enjoy this kind of analysis of some of the old Hollywood animation.  If I get a good response, I will do more.

Thursday, July 11, 2013

No. 45, Jim on a Limb: One (Part 3)

Digging Deeper


Last time I determined that something had to happen before the man lowered the fox; I needed to show the man coming to the decision to do that: in short, I needed to show him thinking.

Here are the new key drawings.

The beginning pose.  The man still stares in shock.
Suddenly he realizes he must take charge.  He focuses and becomes serious.



He leans in close.  His hands, with the fox, have not moved out of position yet.


Now he looks up and makes eye contact with his wife.  Then he nods to her (not shown), indicating that he intends to start moving the fox.  Nervously, she nods agreement.

As an anticipation he raises his elbows.

He lowers the fox down.  It is still gripping her nose.

Having got this far, his expression now returns to one of puzzlement.  Why has the fox done this? What can he do now?
 Only the changes in the man are seen here, but in a scene this complex, there are many things that must be animated one at a time, each time passing through all the drawings and keeping each movement in sympathy with the others.

The woman will have trouble keeping in step with the man, so her nose gets stretched out a bit at first, causing her some pain.  The fox, rather than just holding on, gives the woman's nose a good jerk as they start down, further adding to her discomfort.  Last, the fox's tail will be animated in movements that give expression to his moods, but not so as to distract from the more important movements.

Next: How it looks in pencil test.
